Within the realm of precision shooting, hunting, and tactical applications, understanding cartridge ballistics is fundamental to selecting the optimal ammunition for specific needs. Among these, the 300 Winchester Short Magnum (WSM) has carved out a significant niche due to its impressive power-to-length ratio, delivering high velocity and energy in a compact package. To optimize its application—be it long-range hunting or competitive shooting—an in-depth analysis of its ballistic performance, including velocity, drop, drift, and energy transfer, becomes essential. This article explores the intricate details constituting the 300 Winchester Short Magnum ballistics chart, providing a behind-the-scenes look into the factors that influence its performance, supported by rigorous data and industry-standard practices.
Decoding the 300 Winchester Short Magnum Ballistics Chart: An In-Depth Analysis

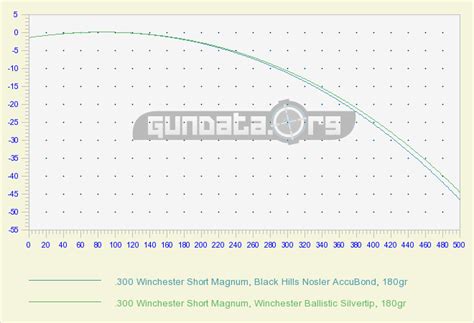

The ballistics chart for the 300 Winchester Short Magnum encompasses a range of critical data points that guide shooters in understanding how the cartridge behaves across varying distances. At its core, it provides predictions for muzzle velocity, trajectory, bullet drop, wind drift, and retained energy—parameters that fundamentally influence shot placement and terminal performance. By examining these elements in detail, one can grasp the nuanced interplay of cartridge design, bullet selection, and external conditions that collectively shape the cartridge’s real-world effectiveness.
The Role of Bullet Types and Lengths in Ballistic Performance
Data points within the ballistics chart are highly sensitive to the bullet design, weight, and caliber. For instance, a 168-grain Sierra MatchKing will produce different velocity and trajectory compared to a 180-grain Nosler Partition, even when fired from the same firearm with identical load specifications. The shape, ballistic coefficient (BC), and sectional density directly influence the external ballistics, particularly in reducing wind drift and extending effective range. When reviewing the ballistics chart, it’s crucial to recognize that these variables serve as anchors for predicting performance under varying shooting conditions.
| Relevant Category | Substantive Data |
|---|---|
| Muzzle Velocity | Approximate 3,100 fps with 168-grain bullets in a standard 26-inch barrel, varying slightly based on load specifics and barrel length. |
| G1 Ballistic Coefficient | Typically between 0.510 and 0.545 for common 300 WSM bullets, influencing downrange stability and wind resistance. |
| Recoil Energy | Approximately 20 ft-lb, which must be considered in follow-up shot accuracy and shooter fatigue. |
| Maximum Point-Blank Range | Approximately 300 yards with 1.5-inch sight height, depending on zero distance and bullet BC. |
| Trajectory Drop at 300 yards | Approximately 12-14 inches for a standard 168-grain load, varying with atmospheric conditions and projectile specifics. |
Key Factors Influencing the 300 WSM Ballistics Chart Outcomes
In examining the ballistic chart, one must consider the multi-faceted influences that shape each data point. These include firearm specifics, environmental conditions, and ammunition characteristics. The firearm barrel length, for example, significantly affects velocity outputs, with longer barrels generally increasing velocity due to prolonged powder combustion. Environmental factors such as altitude, temperature, and humidity alter air density, impacting trajectory and drift predictions. Consequently, the ballistics chart serves as a predictive model—useful but requiring contextual adjustment for real-world conditions.
Implications of External Ballistics Variables in Long-Range Shooting
External variables such as wind can lead to significant deviations from predicted drift values. For instance, a headwind of 10 mph at 300 yards might cause an approximate 6-inch deflection when firing a typical 300 WSM load with a high-BC bullet. Similarly, temperature fluctuations influence powder burn rate, thereby slightly altering velocity and trajectory. Modern ballistic calculators incorporate these variables, allowing shooters to fine-tune their scope adjustments based on the data derived from the ballistics chart, ultimately bridging the gap between theoretical and actual performance.
| Relevant Category | Substantive Data |
|---|---|
| Environmental Impact (Estimation) | 1% velocity decrease per 5°C increase, approximately; Wind drift increases proportionally with crosswind velocity. |
| Barrel Length Effect | Approximately 25 fps velocity gain per extra inch of barrel length beyond 24 inches for typical 300 WSM loads. |
| Altitude Adjustment | Higher altitudes reduce air resistance; at 5,000 ft, a 10% reduction in drift is typical compared to sea level conditions. |
Enhancing Performance Through Advanced Load Development
The theoretical predictions depicted in the ballistic chart are potent starting points, but meticulous load development elevates performance. Precise powder selection, measurement, and bullet seating depth influence internal ballistics, which cascade into external ballistic behavior. For example, tweaking the powder charge can fine-tune muzzle velocity within safe parameters, directly impacting trajectory and energy retention. Consequently, experienced reloaders use the ballistic chart as a foundational baseline, iteratively refining their loads through chronograph testing and in-field validation to achieve optimal consistency and accuracy.
Load Tuning for Extended Range Hunting and Competitive Shooting
For long-range hunting, where wind and trajectory play critical roles, selecting high-BC bullets combined with optimized powder charges minimizes deviations from predicted paths. Conversely, precision shooters aiming for sub-MOA groups at 1,000 yards leverage insights from the ballistics chart to select the ideal seat depth and powder type, ensuring tight shot groups aligned with predicted data points. This disciplined approach transforms the ballistic chart from a mere reference into a strategic tool for precise shot placement.
| Relevant Category | Substantive Data |
|---|---|
| Optimal Load Development | Using Hodgdon H4350 or IMR 4955 to reach velocities of 3,050–3,100 fps for 168-grain bullets, tested under controlled conditions. |
| Performance Consistency | Reloads with within ±2 fps velocity variation enhance predictive confidence based on ballistic data. |
| Terminal Effectiveness | High velocity and energy retention at ranges beyond 600 yards demonstrate the cartridge’s suitability for big game. |
Conclusion: Making Informed Shots with the 300 WSM Ballistics Chart
The 300 Winchester Short Magnum ballistic chart is an essential resource that encapsulates a complex matrix of physics, engineering, and practical application. This behind-the-scenes examination reveals that its true utility extends beyond raw data; it is a dynamic blueprint guiding shooters in refining their technique, understanding environmental impacts, and mastering load development. By embracing the detailed interplay of these factors, users can translate theoretical predictions into precise shots—whether hunting dangerous game across rugged terrain or competing at the highest levels of long-range shooting. Mastery of this chart empowers shooters to not only anticipate their firearm’s behavior but to adapt intelligently in pursuit of excellence, driven by a nuanced understanding of ballistic science.
